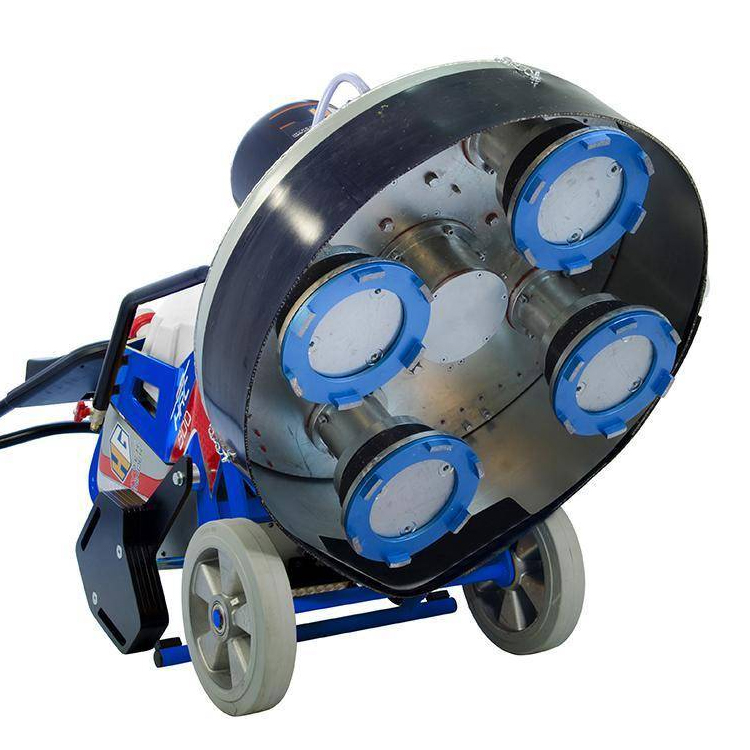

Name:HG HRC 800

FLOOR GRINDER WITH DCT SYSTEM

The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).



Product Details
Parameter

140x140

Product introduction




The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).

The new range of HRC grinders introduces the exclusive DCT transmission. Thanks to this innovative function, it is possible to lock the rotation of the main plate and allow only the rotation of the tools simply by pressing a lever on the planetary (DCT ON). With the DCT in the ON position you gain higher speeds of the satellites for a more aggressive and effective grinding.

The DCT ON system is ideal for glue and resin removal work, surface preparation and floor levelling. Turning off the DCT (DCT OFF) lever will cause the main plate to rotate in the direction of the tools. In DCT OFF mode the planetarium is counter-rotating for general polishing, marble polishing, natural stone and concrete.

DCT ON: Only allows rotation of the tool holder satellites, this option makes HRC extremely effective and aggressive for the preparation, removal of glues and resins, for leveling the surface and for rapid exposure of the concrete aggregate.

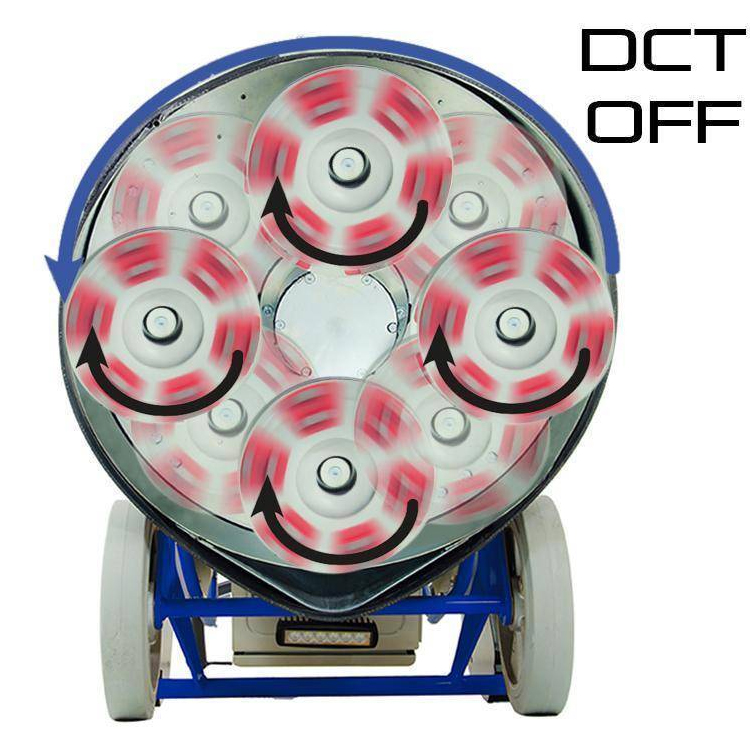

DCT OFF: Allows rotation of the planetary in counter-rotating mode, ideal for sanding and polishing concrete, marble and natural stone floors.



MAIN FEATURES

  • 4 Heads planetarium.
  • Regulation independent of planetary speed and of the tools (BIMOTOR)
  • Single-shell chassis, robust and compact for less space.
  • 180° overturning system for extra weight. (Optional)
  • Powerful front and rear LED spotlights (optional).
  • Total transmission with heat treated gears for maximum reliability and durability.
  • Noise reduction levitating planetarium.
  • 2 Year Warranty: The GUARANTEE for machines equipped with “hour counter” is up to 2 years or 600 hours of work.
Model HRC 800 VS
Motor HP max 20 HP
Drive Inverter 15 kW
Volt 380-480
Hertz 50/60
Amp 32
Motor speed rpm 400-1300 rpm
Working width 800mm
Tools Dimension 4x240mm
Liquids Tank 46 lt
Dimensions LxAxP cm 214x130x86
Weight 520 kg
