Product introduction

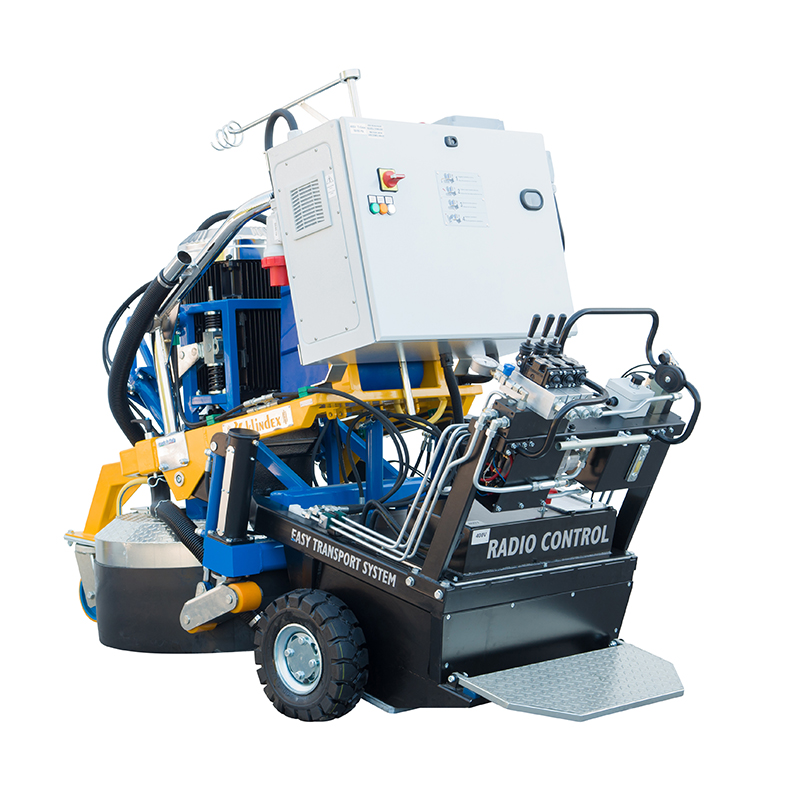

EXPANDER 1000 with the best quality/price relation is the most selling version.

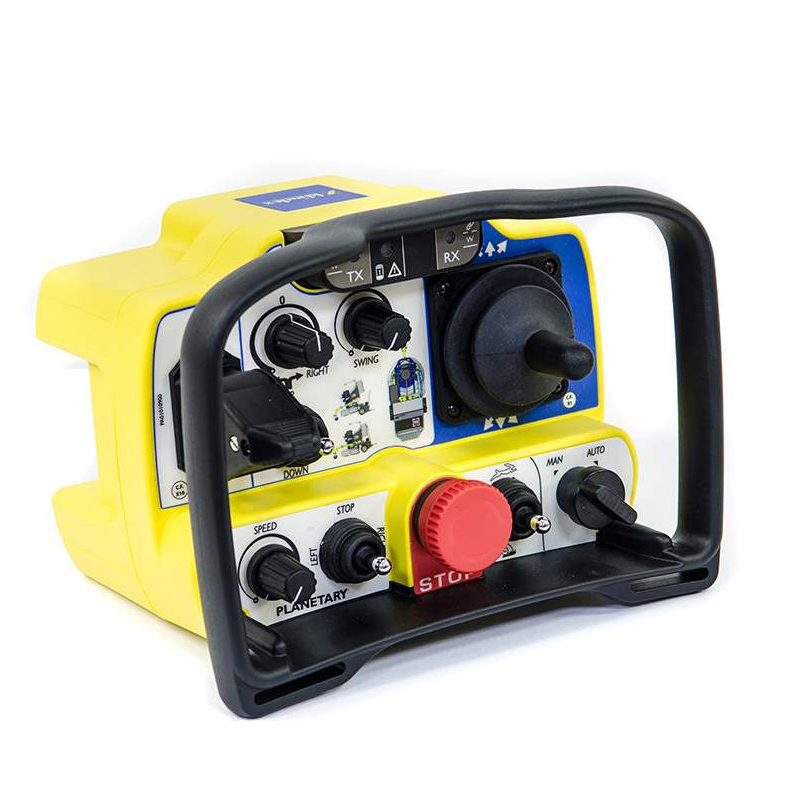

With the included remote control it is possible to adjust working functions such as: • Speed and directions of the machine. • Speed of the planetary. • Planetary turning directions. • Drift control. • Emergency safety stop. Main features: One button system to rotate the planetary of 90° to allow a fast and easy change of tools. • Strong gear box with thermo-hardened steel gears for a longer life. • Adjustable working pressure from 500 up to 1250 kg. • Adjustable inclination of the Planetary to allow a bigger frontal cutting. • No noise during the work. • Third insertable front wheel for easy transport and to load into the van. • Battery powered for independent tractions when unplugged. • Auto levelling Planetary System. • Powered planetary lifting.
Additional features: • To prevent working emergencies the machine is engineered to be operated also manually with included special handle and independent manual hydraulic pump.
Read More
| ESTIMATED PRODUCTION |
sqf / h |
m² / h |
 |
| Superconcrete 7 step |
400-450 |
40-45 |
| Concrete Grind 1 step |
1600-2200 |
160-220 |
| Terrazzo Grind 5 step |
450-600 |
45-60 |
| Glue Removal 1 step |
2000-3000 |
200-300 |
| Paint Removal 1 step |
2000-3000 |
200-300 |
| Marble Polishing 5 step |
300-500 |
30-50 |
| Granite Polishing 7 step |
200-300 |
20-30 |
| * Production numbers may vary according to surface conditions, diamonds used, equipment operator, etc. |
| DATA FOR SHIPPING |
|
| Vol. Packaging |
Size Packaging |
Weight |
| 3,80 m³ |
200x160x120cm |
1340 Kg |
| TECHNICAL DATA |
|
| Model |
Motor |
Volt |
Hertz |
Amp |
Speed
Tools rpm |
Working
Width |
Pressure Work |
Tools
Size |
Water
Tank |
Dimensions
LxAxP cm |
Weight |
| EXPANDER 1000 AT-RX-SX |
25 HP |
380-480 |
50/60 |
35 |
300-1300 |
1000mm |
500-1200Kg |
6x240mm |
46 lt |
190x150x105 |
1313 Kg |
EXPANDER 1000
Expander 1000 with best quality/price relation is the best fully automatic 6 headed grinding machines in the world.With the included wire control it is possible to adjust working functions such as:
- Speed and directions of the machine
- Speed of the planetay
- Planetary turning directions
- Drift control
- Emergency safety stop
- Remote control optional
